HOME >> PRODUCTS >>Signal Boosters >>Five Band Model >> FIVE BAND 800/900/1800/2100/2600 WORK FOR ALL EUROPE,ASIA,AFRICA COUNTRIES

PRODUCTS

Signal Boosters

Single band model

Other accessaries

详细说明

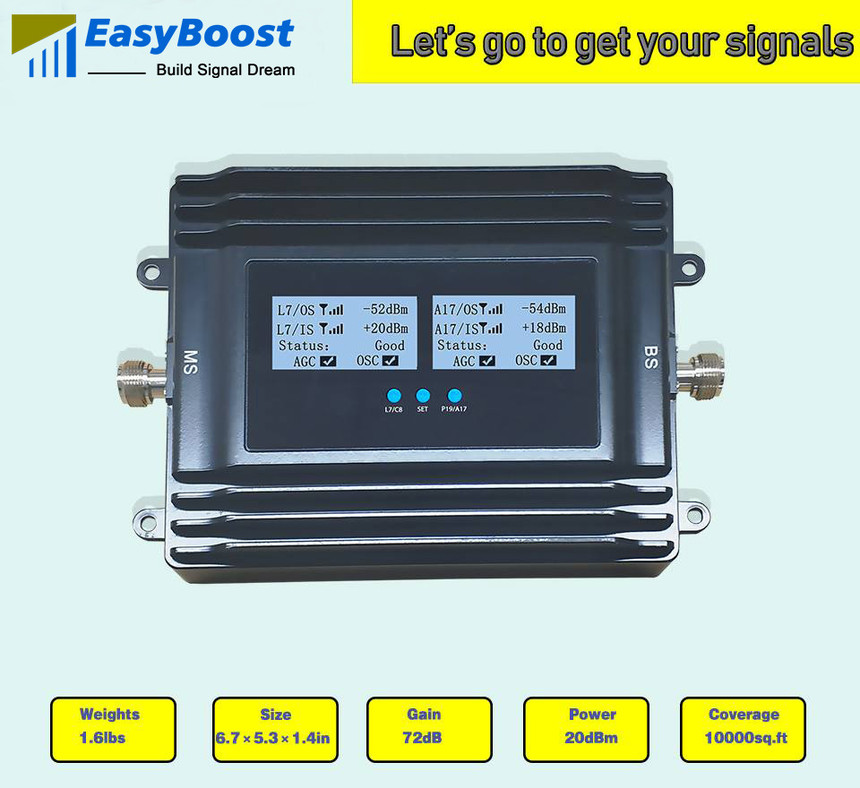

FIVE BAND 800/900/1800/2100/2600 WORK FOR ALL EUROPE,ASIA,AFRICA COUNTRIES

: ~~暂无价格~~

OVERVIEWS
SPECIFICATIONS

Specifications of Five Band Repeater
RF performance
LTE800
	LTE800 DL	LTE800 UL
Band Frequencies	791-821MHz	832-862MHz
Maximum Gain	72dB	63dB
Maximum Output power	15dBm	22dBm
popple	<10dB	<10dB
GSM900
	GSM900 DL	GSM900 UL
Band Frequencies	935-960MHz	890-915MHz
Maximum Gain	72dB	63dB
Maximum Output power	15dBm	22dBm
popple	<8dB	<8dB
DCSLTE1800
	DCSLTE1800 DL	DCSLTE1800 UL
Band Frequencies	1805-1880MHz	1710-1785MHz
Maximum Gain	72dB	63dB
Maximum Output power	15dBm	22dBm
popple	<8dB	<8dB
WCDMA2100
	WCDMA2100 DL	WCDMA2100 UL
Band Frequencies	2110-2170MHz	1920-1980MHz
Maximum Gain	68dB	63dB
Maximum Output power	15dBm	22dBm
popple	<8dB	<8dB
LTE2600
	LTE2600 DL	LTE2600 UL
Band Frequencies	2500-2570MHz	2620-2690MHz
Maximum Gain	68dB	63dB
Maximum Output power	15dBm	22dBm
popple	<8dB	<8dB
General
RF Connectors	N-Female
VSWR	≤2.0
DC Input	6-12VDC
Quiescent Power Consumption	≤6.5W
Operating Temperature	-4℉ to +131℉
Dimensions	6.75.31.4in
Weight	≤2.2lbs
Compliance standard	RED CE
Important function 1	When the input signal is too strong, it does not shut down
Important function 2	Automatic adaptation function to eliminates oscillation.

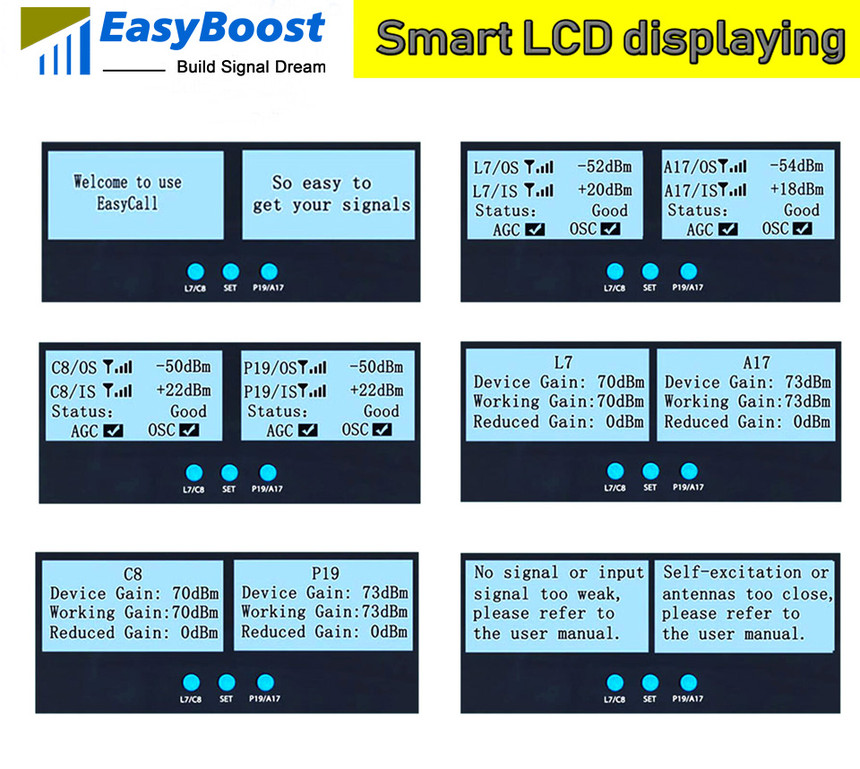

Important function 3	LCD screen displays the real-time Working status of the Booster and has the function of displaying the downlink signal as low as -90dBm.
Important function 4	LCD screen displays the installation mistake ,and provide the solution.
Important function 5	Automatic warning once the booster has problem,and shows the sole problem code
