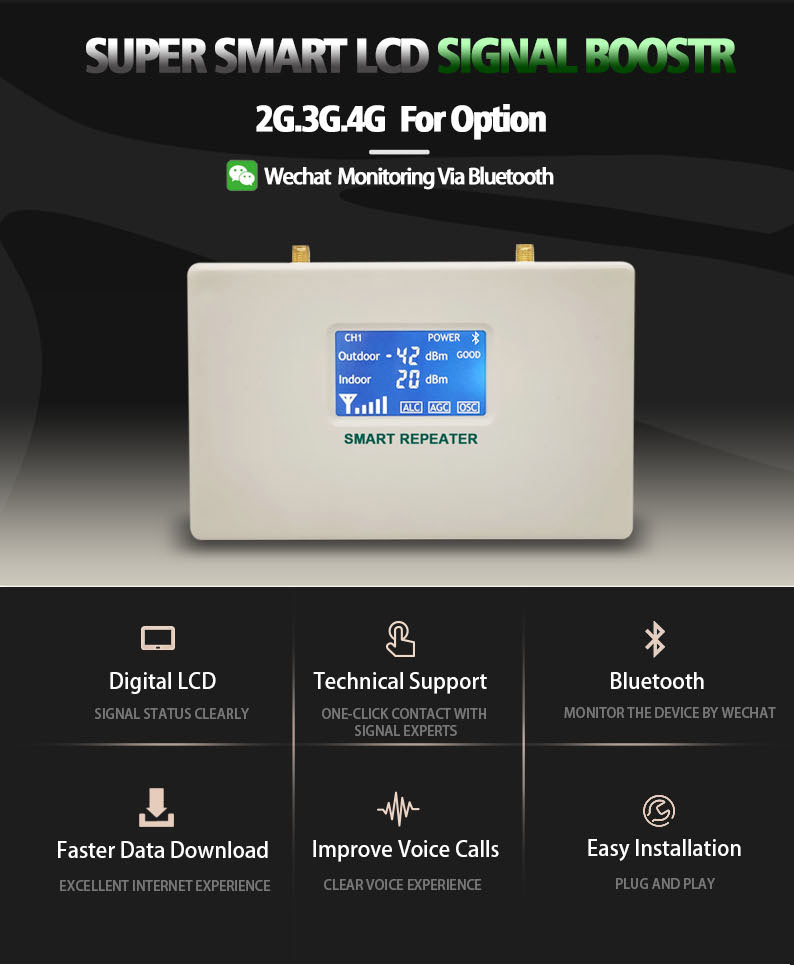

SINGLE BAND SIGNAL BOOSTER 70dB GAIN WITH BLUETOOTH CONNECTION

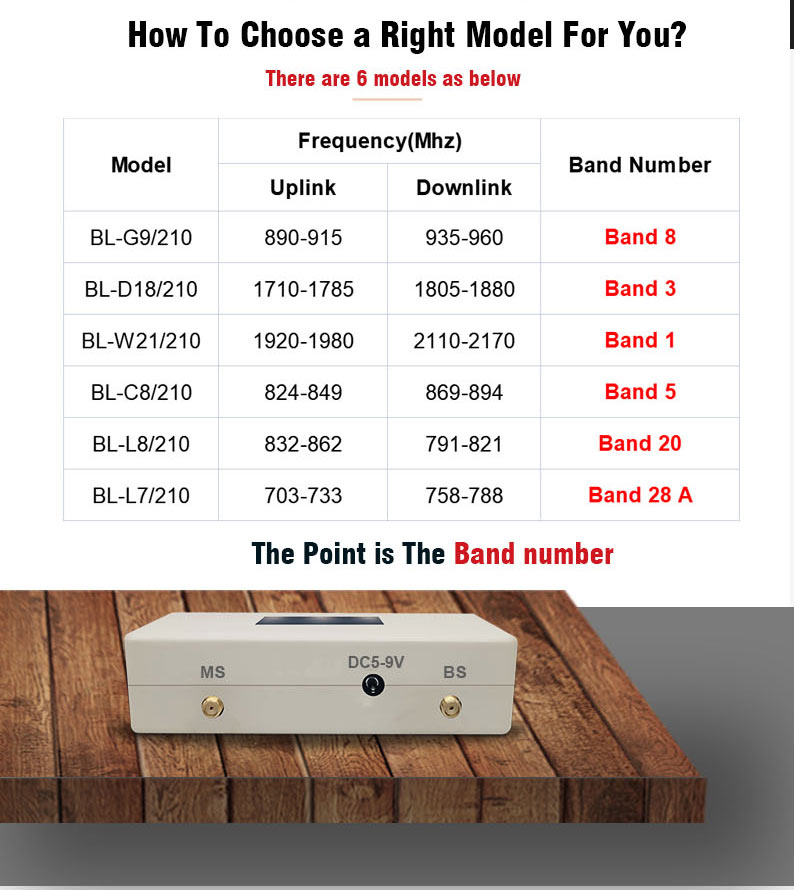

Frequency Range

LTE800MHz,CDMA850MHz,GSM900MHz,DCS/LTE1800MHz,

WCDMA2100MHz,PCS1900MHz,AWS1700MHz,LTE700MHz.

Frequency Bandwidth (3dB Bandwidth)

Customized

Gain

65-70dB

Automatic   gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain   Control

20dB Min.

Output Power(Customized)

＞22dB

Spurious   Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation    ACPR

≤ -38dBc / 30kHz (measured under rated   output power)

In-band Ripple

≤ 5dB

Voltage Standing Wave Ratio

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N-Type (Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC   110~220V±20%, 50/60Hz DC5V/2A   power adapter

Dimensions

120*106*25(mm)

Weight

≤ 0.45kg

Indication LED

Signal status,Self-oscillation warning and protection,Fault   warning
