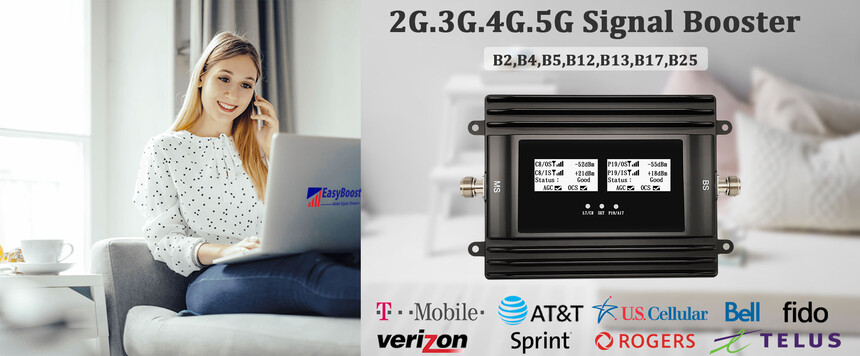

700/8501900/2100Mhz Seven band 2G 3G 4G 5G signal booster work for all the carriers in the US

: ~~暂无价格~~

OVERVIEWS
SPECIFICATIONS

Specifications of Five Band Repeater
RF performance
PCS
	PCS DL	PCS UL
Band Frequencies	1930-1990MHz	1850-1910MHz
Maximum Gain	72dB	63dB
Maximum Output power	15dBm	22dBm
popple	<10dB	<10dB
Cellular
	Cellular DL	Cellular UL
Band Frequencies	849-894MHz	824-849MHz
Maximum Gain	68dB	63dB
Maximum Output power	15dBm	22dBm
popple	<8dB	<8dB
AWS
	AWS DL	AWS UL
Band Frequencies	2110-2155MHz	1710-1755MHz
Maximum Gain	72dB	63dB
Maximum Output power	15dBm	22dBm
popple	<8dB	<8dB
LTE700-A
	TLE700-A DL	LTE700-A UL
Band Frequencies	728-746MHz	698-716MHz
Maximum Gain	68dB	63dB
Maximum Output power	15dBm	22dBm
popple	<8dB	<8dB
LTE700-V
	TLE700-V DL	LTE700-V UL
Band Frequencies	746-757MHz	776-787MHz
Maximum Gain	68dB	63dB
Maximum Output power	15dBm	22dBm
popple	<8dB	<8dB
General
RF Connectors	N-Female
VSWR	≤2.0
DC Input	6-12VDC
Quiescent Power Consumption	≤6.5W
Operating Temperature	-4℉ to +131℉
Dimensions	6.75.31.4in
Weight	≤2.2lbs
Compliance standard	FCC-13-21A1
Important function 1	When the input signal is too strong, it does not shut down and meets the requirements of FCC-13-21A1.
Important function 2	Automatic adaptation function to eliminates oscillation.

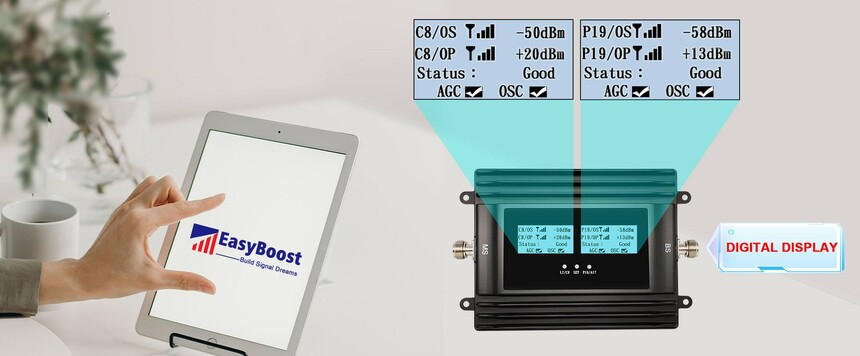

Important function 3	LCD screen displays the real-time Working status of the Booster and has the function of displaying the downlink signal as low as -90dBm.
Important function 4	LCD screen displays the installation mistake ,and provide the solution.
Important function 5	Automatic warning once the booster has problem,and shows the sole problem code
